CWCA-LHN

CWCA-LHN — Counterbalance Valve (T-21A, 60 L/min)

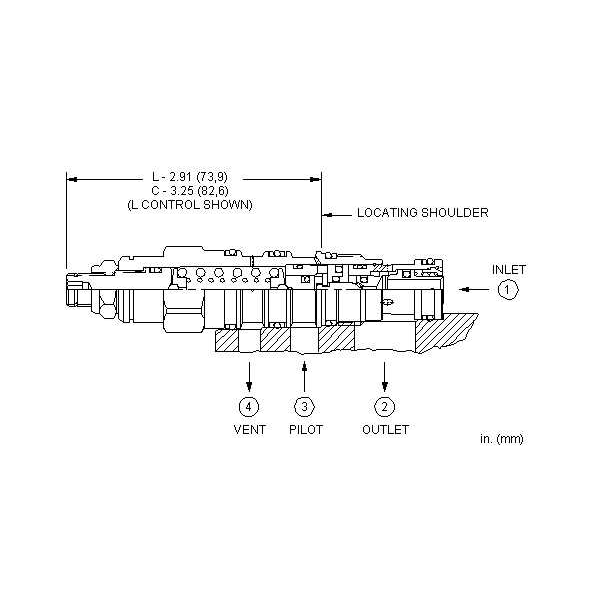

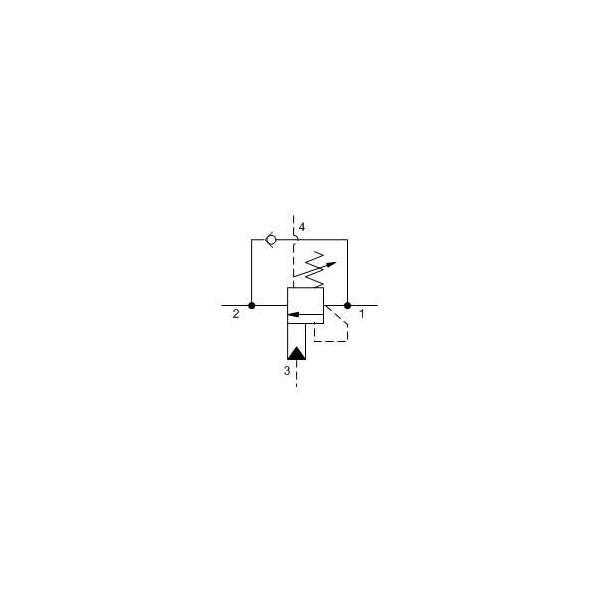

Motion control valve, cartridge cartridge for hydraulic circuits. 4-port counterbalance valve CWCA-LHN, Cavity: T-21A, Capacity: 60 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-21A, Cavity mounted
- Flow capacity: 60
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: MAV/S (1 cavity) or YPV/S (2 cavities)
