CWEA-LHN — Counterbalance Valve (T-22A, 120 L/min)

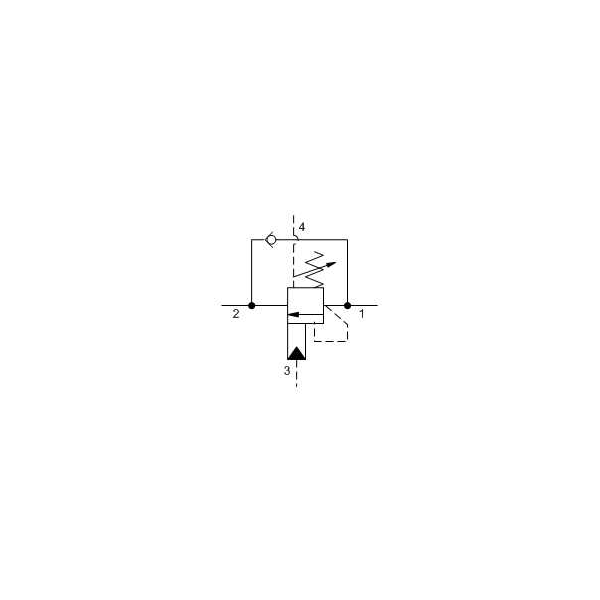

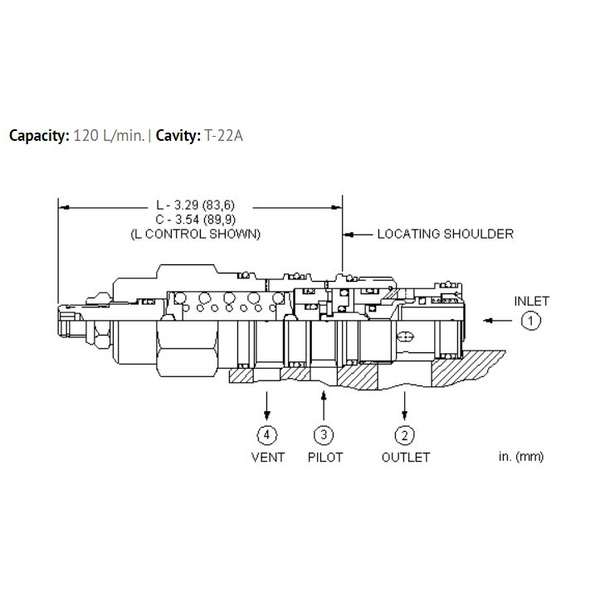

Motion control valve, cartridge cartridge for hydraulic circuits. 4-port counterbalance valve CWEA-LHN, Cavity: T-22A, Capacity: 120 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-22A, Cavity mounted
- Flow capacity: 120
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: NAW/S (1 cavity) or XIW/S (2 cavities)
