CWEL-LGN

140-420BAR — Counterbalance Valve (T-22A, 120 L/min)

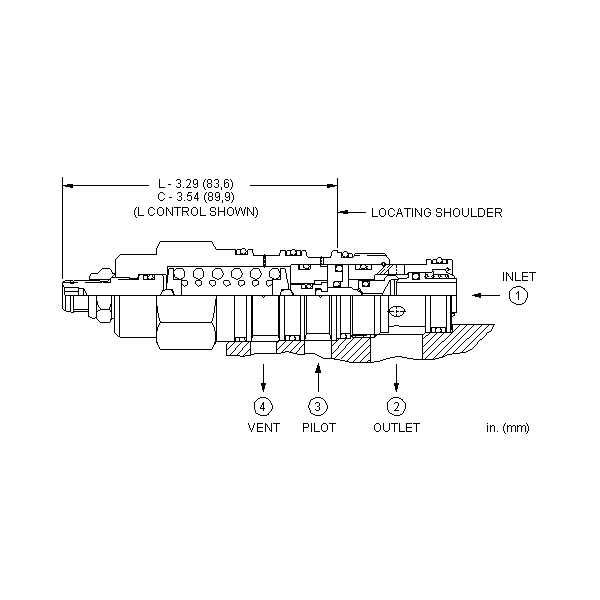

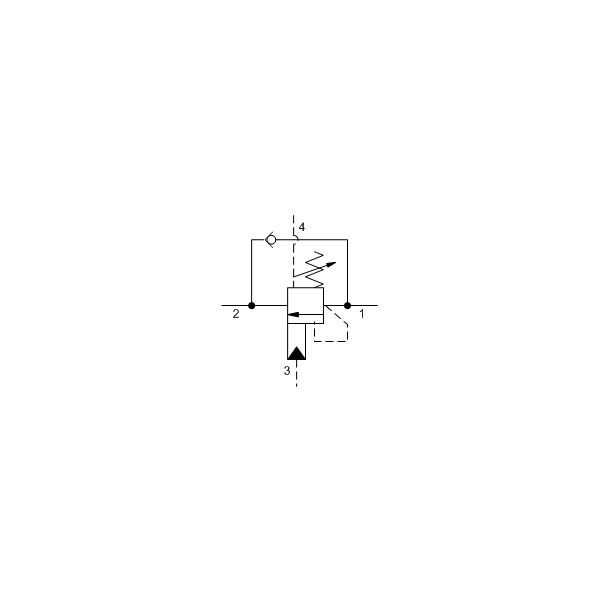

Motion control valve, cartridge cartridge for hydraulic circuits. 4-PORT COUNTERBALANCE VALVE CWEL-LGN, CAVITY: T-22A, CAPACITY: 120 L/MIN, PILOT RATIO 2:1, RANGE: 140-420BAR.
Key specifications
- Cavity / interface: T-22A, Cavity mounted
- Flow capacity: 120
- Working pressure: 350 bar
- Pilot ratio: 2:1
- Adjustable pressure range: 140–420 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: NAW/S (1 cavity) or XIW/S (2 cavities)
