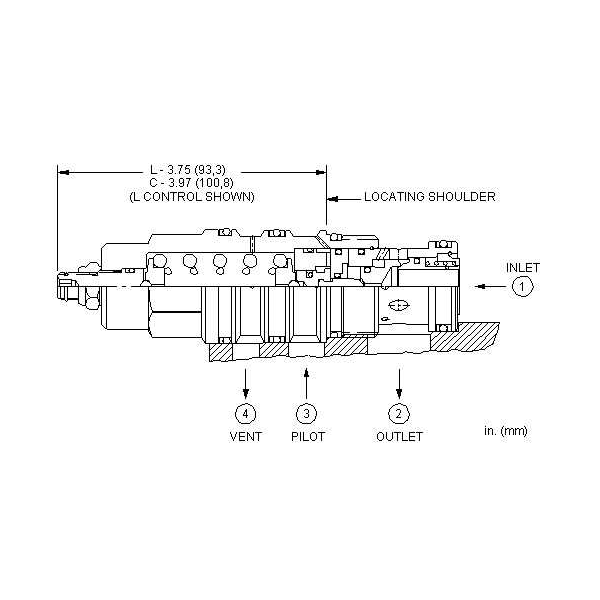

CWGA-LHN — Counterbalance Valve (T-23A, 240 L/min)

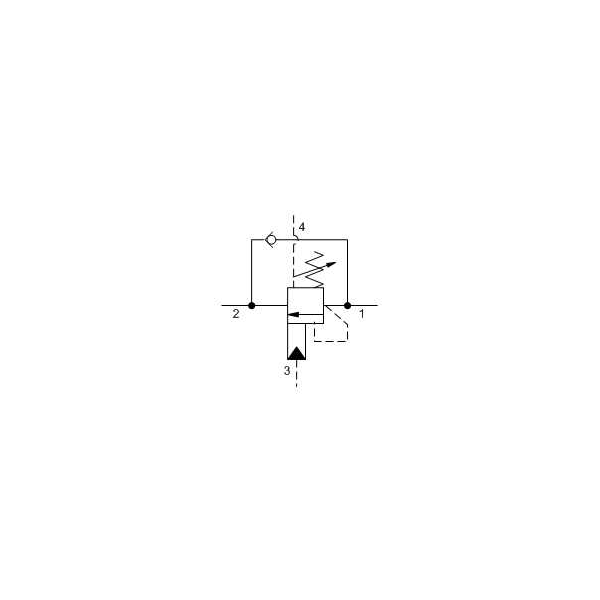

Motion control valve, cartridge cartridge for hydraulic circuits. 4-port counterbalance valve CWGA-LHN, Cavity: T-23A, Capacity: 240 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-23A, Cavity mounted
- Flow capacity: 240
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: PCX/S (1 cavity) or XMX/S (2 cavities)
