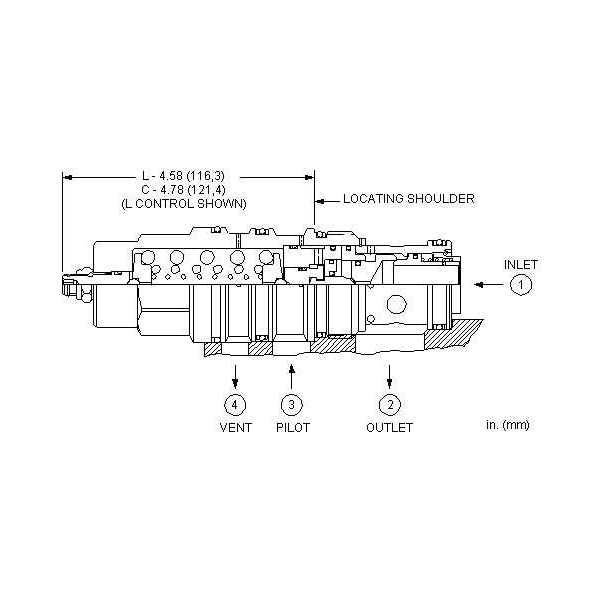

CWIA-LHN — Counterbalance Valve (T-24A, 480 L/min)

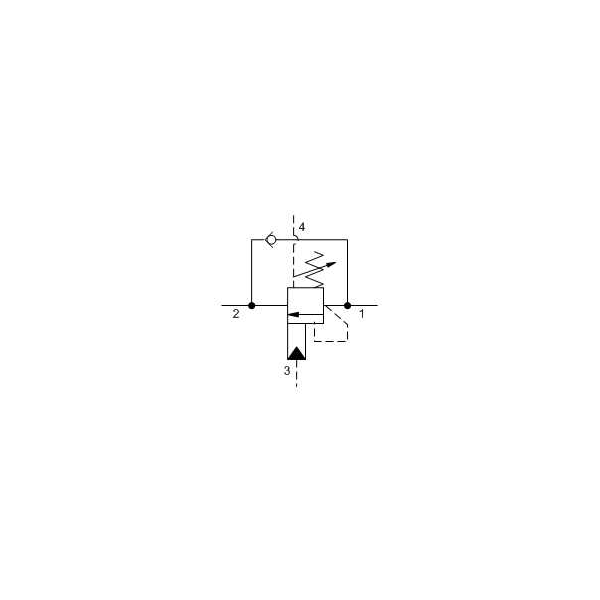

Motion control valve, cartridge cartridge for hydraulic circuits. 4-port counterbalance valve CWIA-LHN, Cavity: T-24A, Capacity: 480 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-24A, Cavity mounted
- Flow capacity: 480
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: QCY/S (1 cavity) or XLY/S (2 cavities)
