DFEJ-MCN

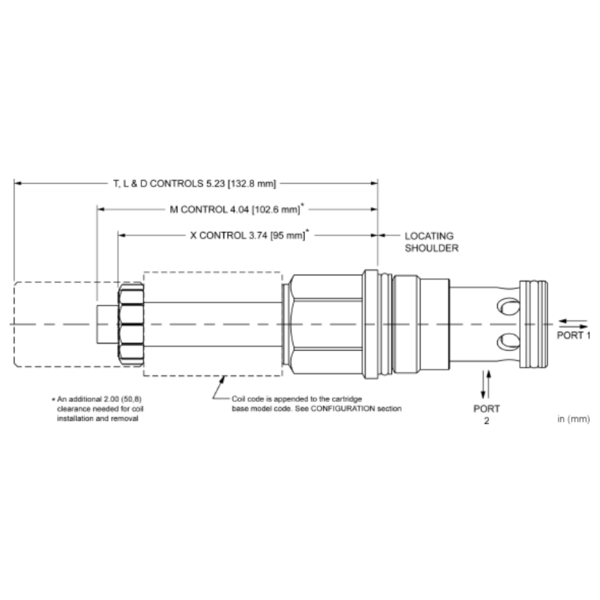

DFEJ-MCN — Directional Valve (T-16A, 240 L/min)
Directional valve, cartridge cartridge for hydraulic circuits. DIRECTIONAL VALVE NO, DFEJ-MCN, CAVITY: T-162A, CAPACITY: 240 L/MIN.
Key specifications
- Cavity / interface: T-16A, Cavity mounted
- Flow capacity: 240
- Working pressure: 350 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: IEY/S
Standard coil Options:
740-223:
230 VAC 50/60 Hz, high-power coil with ISO/DIN 43650, Form A connector with TVS Diode
740-224D:
24 VDC high-power coil with ISO/DIN 43650, Form A connector with TVS Diode
For this application we recommend the XMD Configurable single/double-output driver used with proportional and solenoid-operated switching valves.
-Configurable 0-5 V, 0-10 V, 4-20 mA, pulse, frequency, PWM and digital inputs
-CAN bus, Bluetooth
-IP69k
-0-3000mA
Servi part numbers:
XMD-01 Single driver
XMD-02 Double driver
