DMBF-XAN

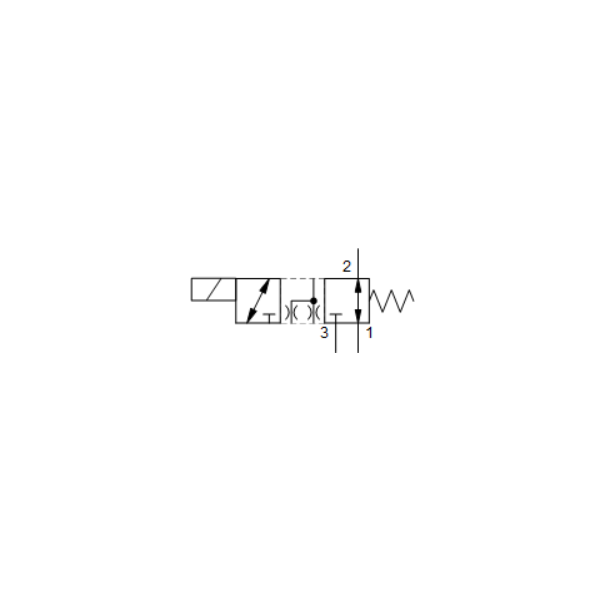

DMBF-XAN — Directional Valve (T-150A, 15 L/min)
Directional valve, cartridge cartridge for hydraulic circuits. Directional valve, DMBF-XAN, Cavity: T-150A, Capacity: 15 l/min.
Key specifications

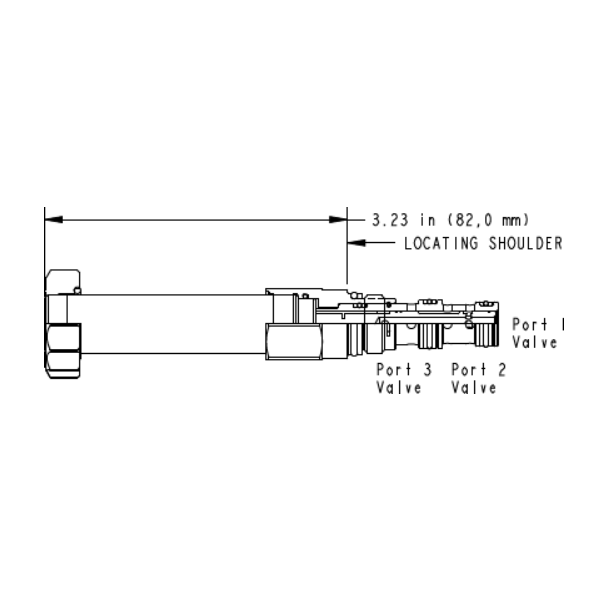

- Cavity / interface: T-150A, Cavity mounted
- Flow capacity: 15
- Working pressure: 350 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: JLV/S
Standard coil Options:
740-223:
230 VAC 50/60 Hz, high-power coil with ISO/DIN 43650, Form A connector with TVS Diode
740-224D:
24 VDC high-power coil with ISO/DIN 43650, Form A connector with TVS Diode
For this application we recommend the XMD Configurable single/double-output driver used with proportional and solenoid-operated switching valves.
-Configurable 0-5 V, 0-10 V, 4-20 mA, pulse, frequency, PWM and digital inputs
-CAN bus, Bluetooth
-IP69k
-0-3000mA
Servi part numbers:
XMD-01 Single driver
XMD-02 Double driver
