MBEA-LHN

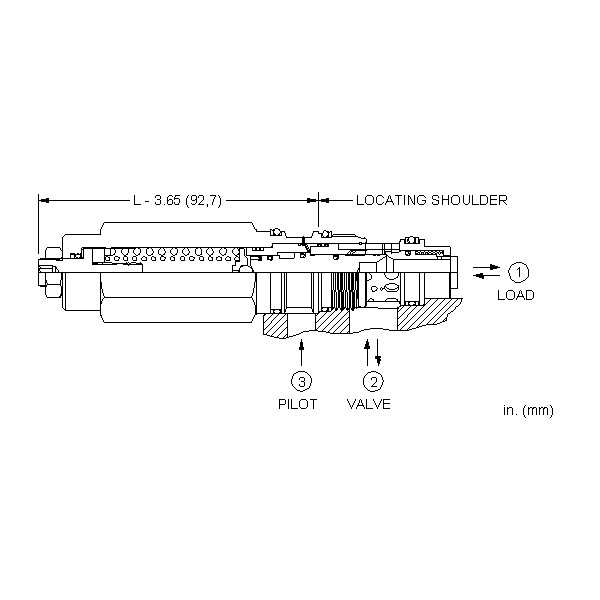

70-280BAR — Counterbalance Valve (T-2A, 120 L/min)
Motion control valve, cartridge cartridge for hydraulic circuits. 3-PORT COUNTERBALANCE VALVE MBEA-LHN, CAVITY: T-2A, CAPACITY: 120 L/MIN, PILOT RATIO 3:1, RANGE: 70-280BAR.
Key specifications
- Cavity / interface: T-2A, Cavity mounted
- Flow capacity: 120
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: BCW/S (1 cavity) or YAW/S (2 cavities)
For improved stability
