MBGA-LJN

140-350BAR — Counterbalance Valve (T-17A, 240 L/min)

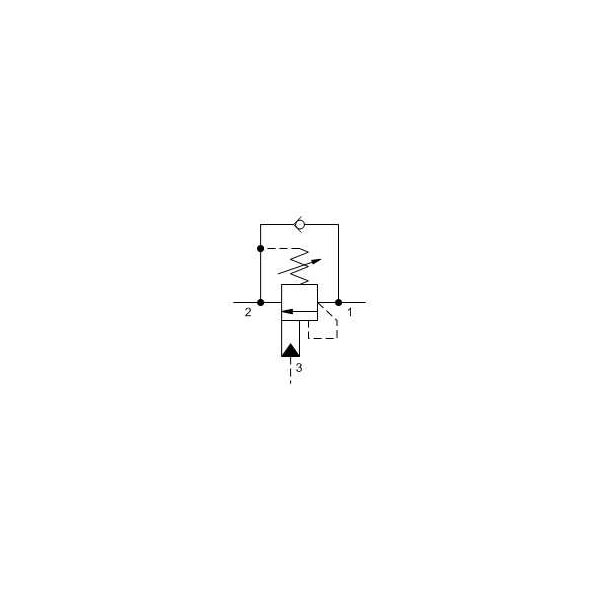

Motion control valve, cartridge cartridge for hydraulic circuits. 3-PORT COUNTERBALANCE VALVE MBGA-LJN, CAVITY: T-17A, CAPACITY: 240 L/MIN, PILOT RATIO 3:1, RANGE: 140-350BAR.
Key specifications

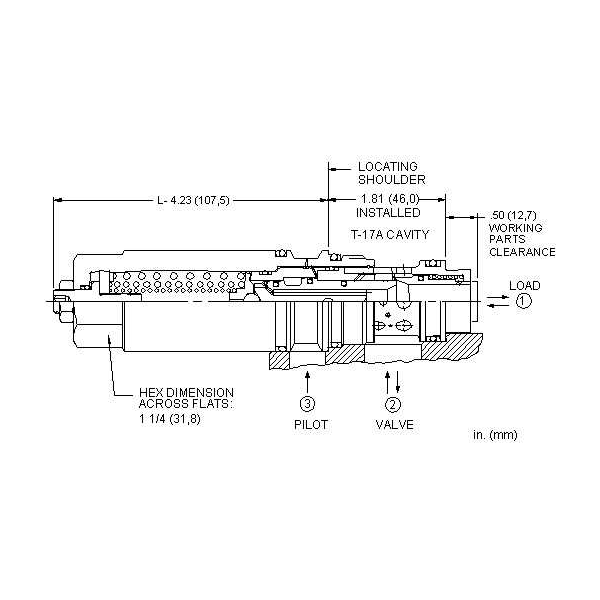

- Cavity / interface: T-17A, Cavity mounted
- Flow capacity: 240
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 140–350 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: HCX/S (1 cavity) or YJX/S (2 cavities)
For improved stability
