MWGA-LHN

70-280BAR — Counterbalance Valve (T-23A, 240 L/min)

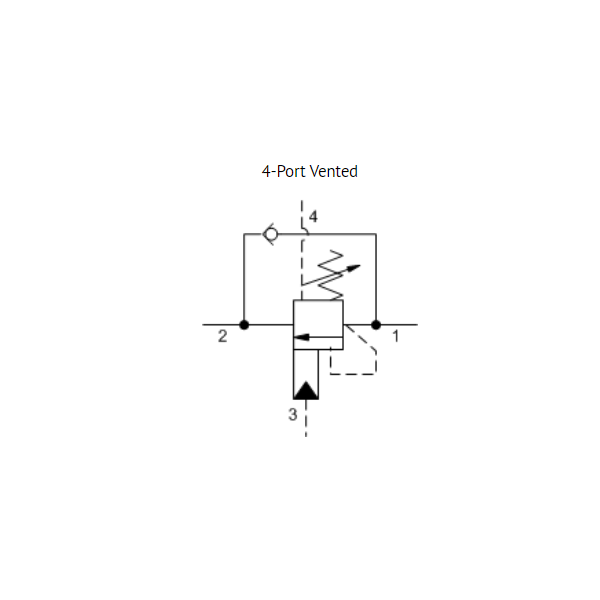

Motion control valve, cartridge cartridge for hydraulic circuits. 4-PORT LOAD REACTIVE COUNTERBALANCE VALVE MWGA-LHN, CAVITY: T-23A, CAPACITY: 240 L/MIN, PILOT RATIO 3:1, RANGE: 70-280BAR.
Key specifications
- Cavity / interface: T-23A, Cavity mounted
- Flow capacity: 240
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: PCX/S (1 cavity) or XMX/S (2 cavities)
For improved stability
