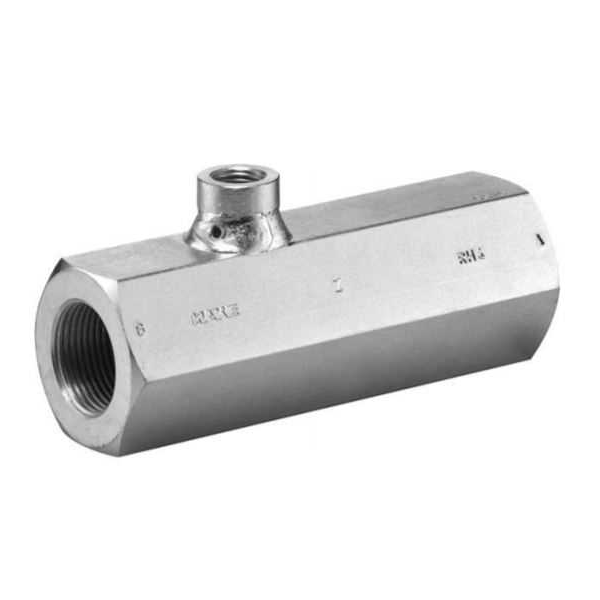

3/4 — Check Valve (75 L/min) Pilot check valve, line.
Product number: HW94100104
Log in to see prices
In stockOut of stockFew in stock
Manufacturer Part No
7610 5004-00
Flow (lpm)
75
Interface/Size
Line mounted
Working pressure (bar)
500
Port size and type
BSPP 3/4''
3/4 — Check Valve (75 L/min) Pilot check valve, line mounted valve for hydraulic circuits. Pilot check valve, RH4, 3/4" BSP, 75l/m, Crack Pressure 0,3 bar, 500 bar. Key specifications - Interface: Line mounted - Flow capacity: 75 - Working pressure: 500 bar
