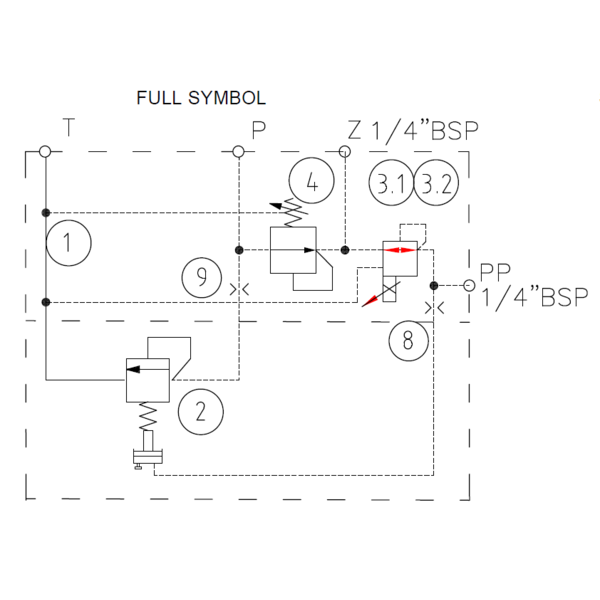

3-43 — Pressure Relief (16 L/min) Prop.pressure relief valve, sub-plate valve for hydraulic circuits. Prop.pressure relief valve AMPR 3-43/-X 24 TEX 4 70 FM, NG6 / Cetop 3, 16l/m, 24V, 5-270Bar, ATEX/IECEx/CSA. Key specifications - Interface: Cetop 3 - Flow capacity: 16 - Working pressure: 350 bar - Adjustable pressure range: 5–270 bar Additional information - AMPR 3-43/-X 24 TEX 4 70 FM Prop.pressure relief valve, sub-plate Pressure range: 5-270 bar, internal pilot +70 degree ambient temp, NG6 valve With EX23 4-PIN TERM.BOX 70 FM Solenoid - B41/2017 AMPR is an ATEX approved proportional relief valve using high quality technology from Hawe. Well suited for external control of LS pressure signal from Hawe PSL/PSV(F). The main components are: - Hawe NPMVP special version - Hawe PMZ with ATEX/IECEx/CSA certified solenoid - Hawe AM pilot supply - Servi customized block All together in a customized housing this gives a flexible, well-functioning valve. Due to it's modularity the AMPR's excellent regulation capabilities may also be integrated in a customized valve block, please contact your local SERVI office for more information. Preferred subplate options: 1501.01 Cetop 3 - 1 element, port under 3001.00 Cetop 3 - 1 element, port side EM103/238Y Cetop 3 - 2 elements EM103/338Y Cetop 3 - 3 elements EM103/438Y Cetop 3 - 4 elements EM103/538Y Cetop 3 - 5 elements
