Ball valve BK3-G3/4-DN20-442A
Ball valve BK3-G3/4-DN20-442A
Ball valve BK3-G3/4-DN20-442A
Ball valve BK3-G3/4-DN20-442A

Ball valve BK3-G3/4-DN20-442A

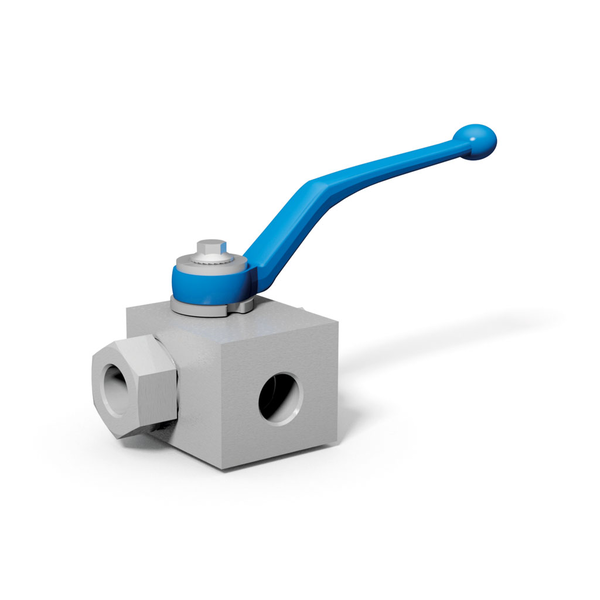

3way ball valve for hydraulic circuits

Product number: 786389

Log in to see prices
In stock Out of stock Few in stock
mha
Manufacturer Part No
99107-01-406-40914
Interface/Size
Line mounted
Base material
Stainless steel
Working pressure (bar)
315
Port size and type
BSPP 3/4''

Ball valve BK3-G3/4-DN20-442A BK3-G3/4 — Ball Valve.

Key specifications

  • Interface: Line mounted.
  • Working pressure: 315 bar.
  • Nominal bore: DN 20.
  • Port thread: G3/4.
  • Temperature range: -20 to 100 °C.
  • Materials: Stainless body/ball/stem.
  • Seats: POM ball seat.
  • Seals: NBR o'rings
