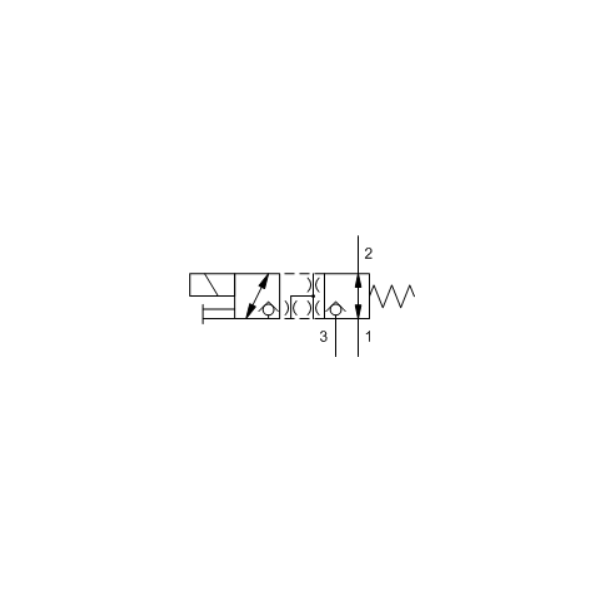

Directional valve for hydraulic circuits

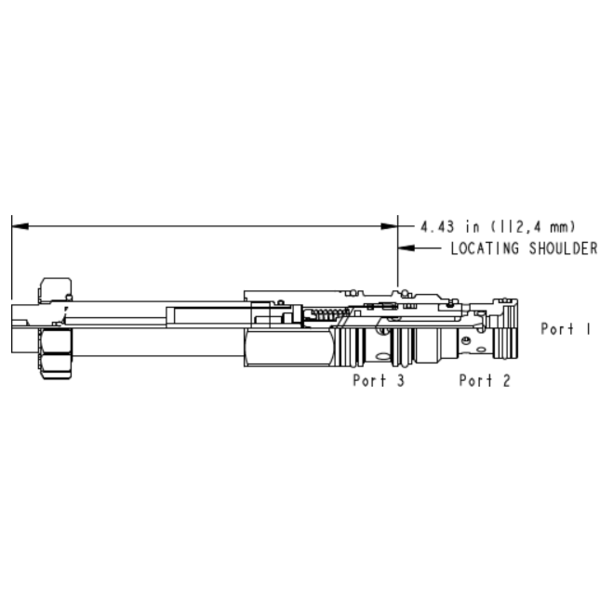

- Directional valve DWDF-MAN
Key specifications
- Cavity / interface: T-11A, cavity mounted
- Flow capacity: 30
- Working pressure: 350 bar
Recommended housings / accessories
- Our recommended housing for this cartridge: ECV/S
Additional information
- Standard coils: 740-223 (230 VAC 50/60 Hz, ISO/DIN 43650 Form A with TVS Diode), 740-224D (24 VDC, ISO/DIN 43650 Form A with TVS Diode). Recommended driver: XMD configurable single/double-output (supports 0–5 V, 0–10 V, 4–20 mA, pulse, frequency, PWM, digital; CAN bus; Bluetooth; IP69K; 0–3000 mA). Servi part numbers: XMD-01 (single), XMD-02 (double).
