Cooler, air/oil ASA1248SA6G

Cooler, air/oil ASA1248SA6G

ASA1248SA6G High line AC drive air-oil cooler 4,5kW/°C - 400lpm - 2,2bar - 3-phase, 7,50kW

Product number: SAC-HL-AC-03

Log in to see prices
More than 5 in stock Special order – send inquiry Fewer than 5 in stock
Asa
Manufacturer Part No
ASA1248SA6G
Flow (lpm)
400
Cooling capacity (kW)
4.5
Diff.pressure at max flow (bar)
2.2
IP Class
IP55
Fluid type
Hydraulic oil
Voltage (V)
230/400V AC 3P 50Hz
Working pressure (bar)
16
Port size and type
SAE 2,5''

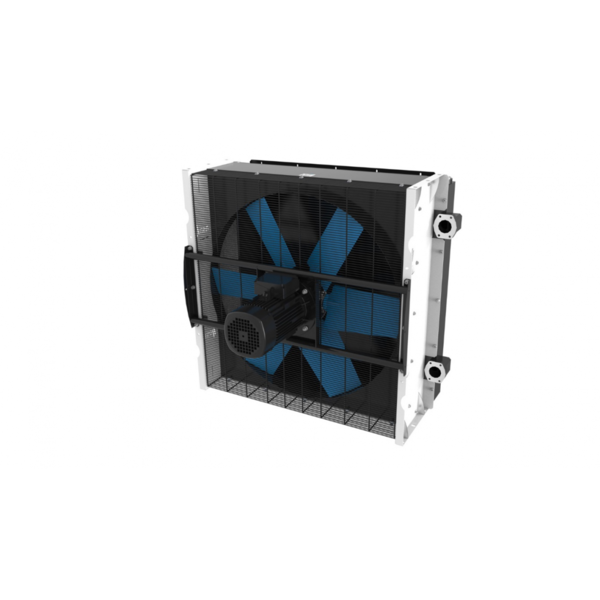

High Line series air/oil cooler designed for high-performance hydraulic systems.

  • It is engineered to handle large cooling capacities and high oil flow rates, making it ideal for demanding industrial and mobile applications.
  • Ideal for industrial hydraulics, mobile machinery, and heavy-duty systems.
  • Model: ASA1248SA6G Motor Power: 7.5 kW Voltage Supply: 400/690V 7,50 kW (50 Hz) Cooling Capacity: 4,5 kW/°C@400 l/min.
  • Protection Class: IP55 Cooling Medium: Hydraulic oil Weight: 307 kg Noise level: 93 dB Air flow: 12.24 kg/s Max Working Pressure: 26 bar
