Cooler, air/oil ASA1248SA8D

Cooler, air/oil ASA1248SA8D

ASA1248SA8D High line AC drive air-oil cooler 3,5kW/°C - 400lpm - 2,2bar - 3-phase, 2,20kW

Product number: SAC-HL-AC-01

Log in to see prices
More than 5 in stock Special order – send inquiry Fewer than 5 in stock
Asa
Manufacturer Part No
ASA1248SA8D
Flow (lpm)
400
Cooling capacity (kW)
3.5
Diff.pressure at max flow (bar)
2.2
IP Class
IP55
Fluid type
Hydraulic oil
Voltage (V)
230/400V AC 3P 50Hz
Working pressure (bar)
16
Port size and type
SAE 2,5''

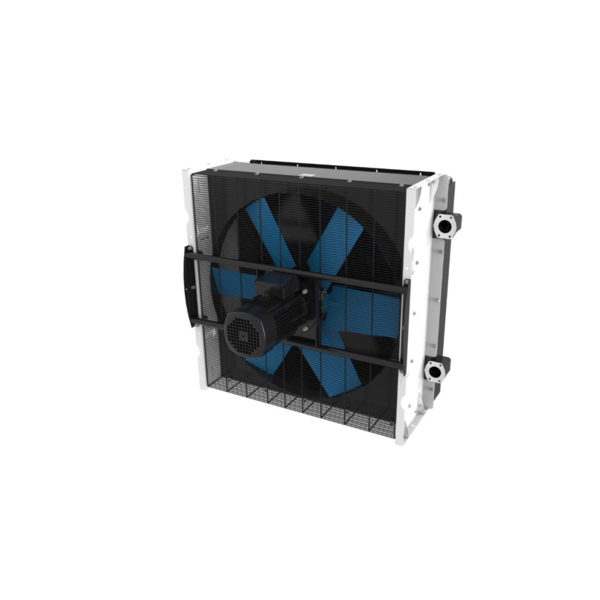

High Line series air/oil cooler designed for high-performance hydraulic systems.

  • It is engineered to handle large cooling capacities and high oil flow rates, making it ideal for demanding industrial and mobile applications.
  • Ideal for industrial hydraulics, mobile machinery, and heavy-duty systems.
  • Model: ASA1248SA8D Motor Power: 2.2 kW Voltage Supply: 230/400V 2,20 kW Cooling Capacity: 3,5 kW/°C@400 l/min.
  • Protection Class: IP55 Cooling Medium: Hydraulic oil Weight: 222 kg Noise level: 83 dB Air flow: 8,42 kg/s Max Working Pressure: 26 bar
