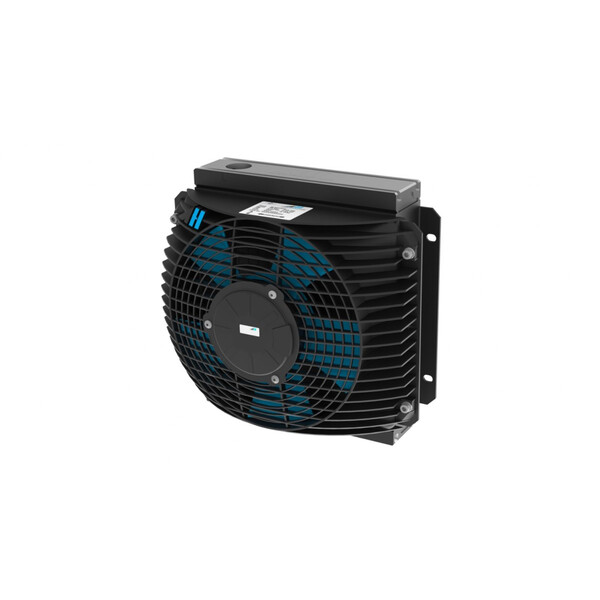

Oil-air cooler from the TT Rail Series, designed for compact, high-efficiency cooling in hydraulic systems.
- Compatible with ASA’s rail system and accessories.
- Ideal for Construction and agricultural machinery, Industrial hydraulic power units and Marine/offshore aplications.
- General Description.
- Model: ASATT07RD04BP Voltage: 24V DC Motor Power: 0.211 kW (0.28 HP) Current Draw: 8.1 A Protection Class: IP68 Air Flow: 0.4 kg/s Noise Level: 78 dB Weight: 7.0 kg Radiator Material: Aluminum Air Fin Shape Wavy Compatible Fluids: Oil and water/glycol mixtures Working Temp.
- Range –20°C to +80°C (oil temperature) Bypass Valve Internal, 2 bar (BP = Bypass Pressure)
