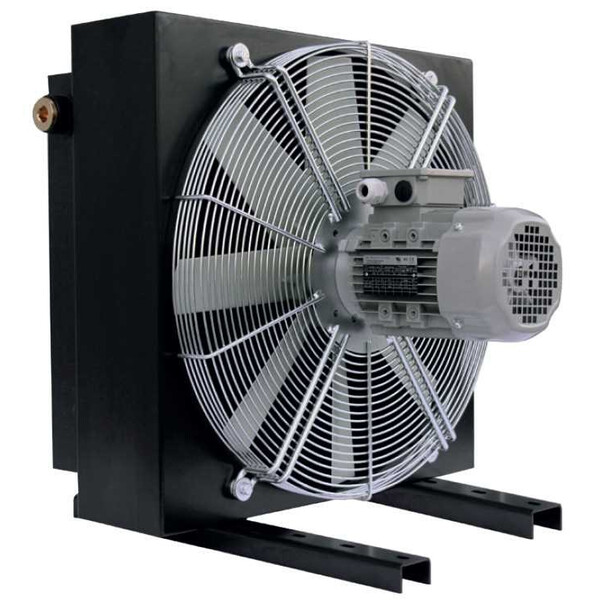

Cooler, air/oil SHCA-C-47.40-4D-100-TSS-0,37kW-4P

Servi SHCA air/oil cooler are efficient, low noise oil coolers that also can be used for water glycol as long as the content is minimum 20% glycol.

• They are delivered with standard industrial paint.
• We can also deliver marine- and offshore versions with special corrosion protection and different electric motors.
• ATEX versions are also available.
• This particular cooler is directly interchangeable with Parker's.
• General Description.
• Series: SHCA Model: C-47.40-4D-100-TSS Motor Type: 3-phase AC motor Motor Power: 0.37 kW Poles: 4 (approx.
• 1500 rpm at 50 Hz) Voltage Supply: 230/400V, 50 Hz (D/Y configuration) Cooling Medium: Hydraulic oil (compatible with water/glycol mixtures ≥ 20%) Cooling Capacity: 0.57 kW/°C@275 l/min.
• Pressure Drop @ Max Flow: ~2.75 bar Noise Level: ~70 dB
