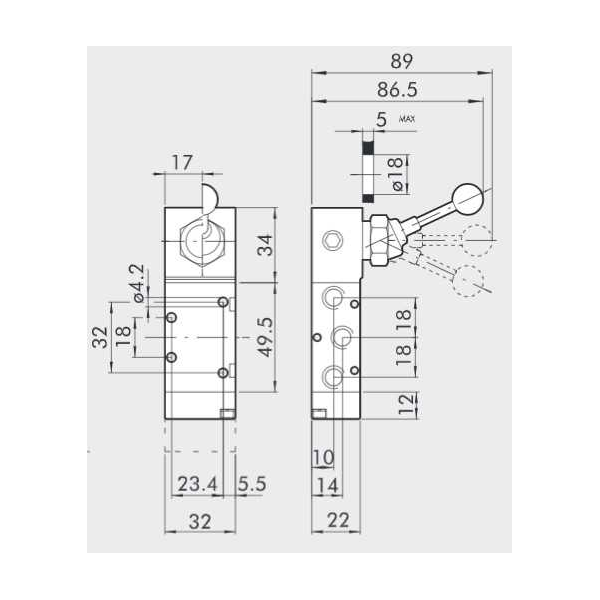

Manual directional valve Series 70 5/3 1/8"
5/3 valve 1/8". Manual actuation. Flow at 6 bar: 400 Nl/min (ΔP 0.5 bar), 550 Nl/min (ΔP 1 bar).
Product number: MAV 26 LEO CC
Log in to see prices
In stockOut of stockFew in stock
Manufacturer Part No
7010000500
Activation type
Hand operated

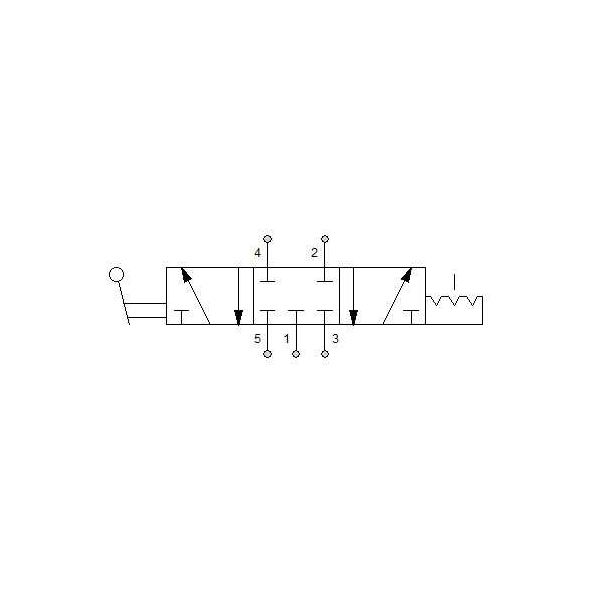

Default position
CC - Closed center
Operating mode
Bi-stable
Port size and type
1/8" BSP
Spool type
5/3
Series 70 is part of Metal Work’s range of traditional valves. Available in sizes 1/8", 1/4", 3/8" and 1/2", in versions 3/2, 5/2, 5/3 and double 3/2, with mechanical, manual, pneumatic or electric actuation.
Key data: - Operating pressure vacuum to 10 bar - Temperature range: standard −10…+60 °C, LT version −40…+60 °C - Flow at 6 bar 400 Nl/min (ΔP 0.5 bar), 550 Nl/min (ΔP 1 bar)
Mounting: can be installed in line, onto a wall, directly on the cylinder with bracket or in series on a multiple/modular base. Standards/certificates: ATEX, ISO 13849, SIL.
Applications: control of pneumatic actuators and cylinders in industrial automation.
