Manufacturer Part No
N1150003-1

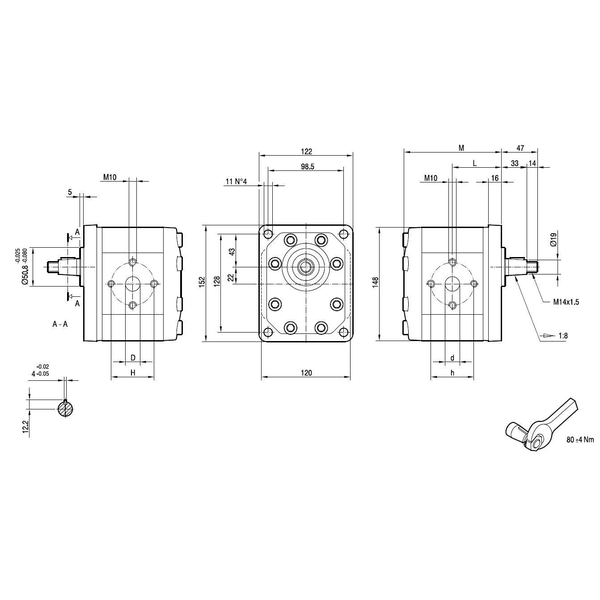

Mounting flange
98,5x128-Ø50,8 (43)
Nominal flow (lpm)
48
Working pressure (bar)
270
Shaft interface
Ø19 1:8-M14x1,5-Key4
Displacement (cm³/rev)
33

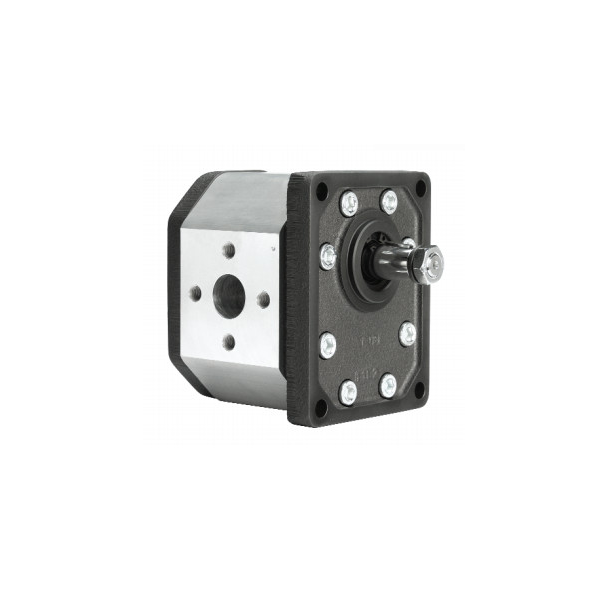

Marzocchi GHP3D50 is a high-performance gear pump made of aluminum and cast iron with 33 cm³/rev displacement and 270 bar max pressure. Delivers 49.5 l/min at 1500 rpm and ensures low pulsation, high efficiency, and durable operation.
