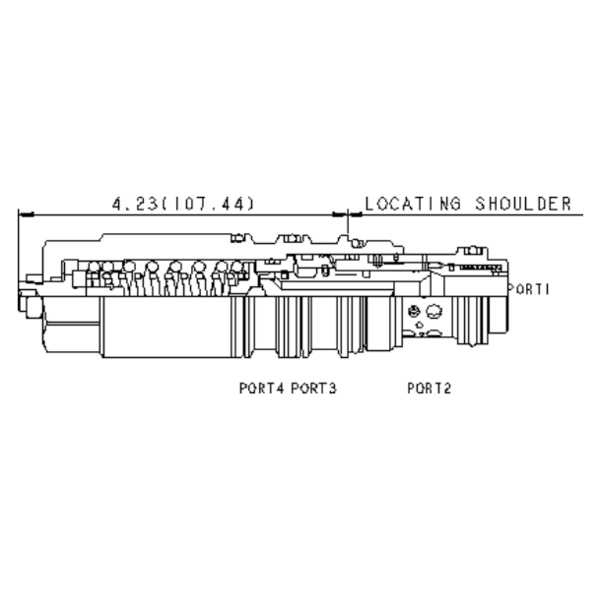

70-280BAR - Motion control valve (T-23A, 240 l/min)

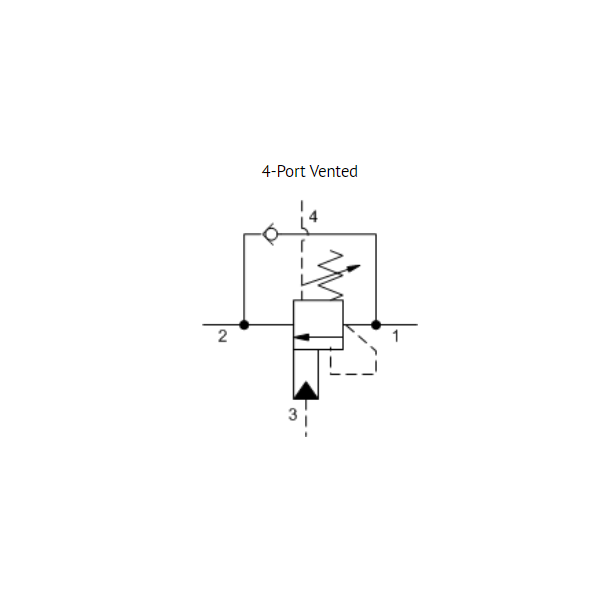

- 4-port, load reactive MWGA-LHN; pilot ratio 3:1; adjustable range 70–280 bar
- Cavity/interface: T-23A, cavity mounted
- Flow capacity: 240 l/min
- Max working pressure: 350 bar
Recommended housings / accessories
- PCX/S (1 cavity) or XMX/S (2 cavities)
- For improved stability
