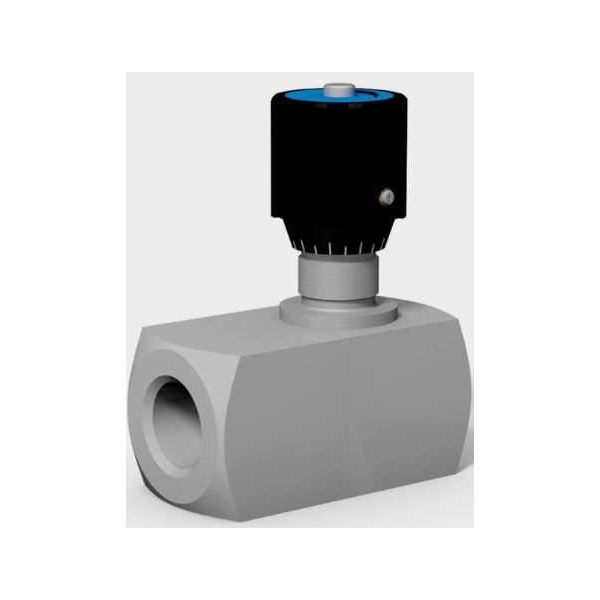

NDRV-DN16-G3/4-1A — Throttle Valve (75 L/min) Throttle-check valve, line mounted.

Product number: 770226

Log in to see prices
In stock Out of stock Few in stock
mha
Manufacturer Part No
94206-01-917-28978
Flow (lpm)
75
Interface/Size
Line mounted
Working pressure (bar)
350
Port size and type
BSPP 3/4''
NDRV-DN16-G3/4-1A — Throttle Valve (75 L/min)
Throttle-check valve, line mounted valve for hydraulic circuits. Throttle/check valve, NDRV-DN16-G3/4-1A Zn, Crack Pressure 0,5 bar, 75 l/m.
Key specifications
- Interface: Line mounted
- Flow capacity: 75
- Working pressure: 350 bar
- Nominal bore: DN 16
- Port thread: G3/4
