Pneumatically actuated directional valve Series 70 5/3 1/2"

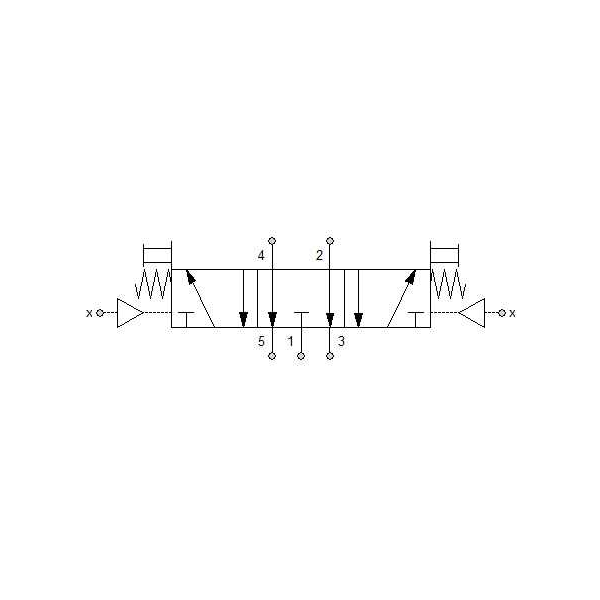

5/3 valve 1/2". Pneumatic pilot actuation. Flow at 6 bar: 3200 Nl/min (ΔP 0.5 bar), 4600 Nl/min (ΔP 1 bar).
Product number: PNV 46 PNS OC
Log in to see prices
In stockOut of stockFew in stock
Manufacturer Part No
7030012200
Activation type
Pneumatic
Default position
OC - Open center
Operating mode
Bi-stable
Port size and type
1/2" BSP
Spool type
5/3
Series 70 is part of Metal Work’s range of traditional valves. Available in sizes 1/8", 1/4", 3/8" and 1/2", in versions 3/2, 5/2, 5/3 and double 3/2, with mechanical, manual, pneumatic or electric actuation.
Key data: - Operating pressure vacuum to 10 bar - Temperature range: standard −10…+60 °C, LT version −40…+60 °C - Flow at 6 bar 3200 Nl/min (ΔP 0.5 bar), 4600 Nl/min (ΔP 1 bar)
Mounting: can be installed in line, onto a wall, directly on the cylinder with bracket or in series on a multiple/modular base. Standards/certificates: ATEX, ISO 13849, SIL.
Applications: control of pneumatic actuators and cylinders in industrial automation.
