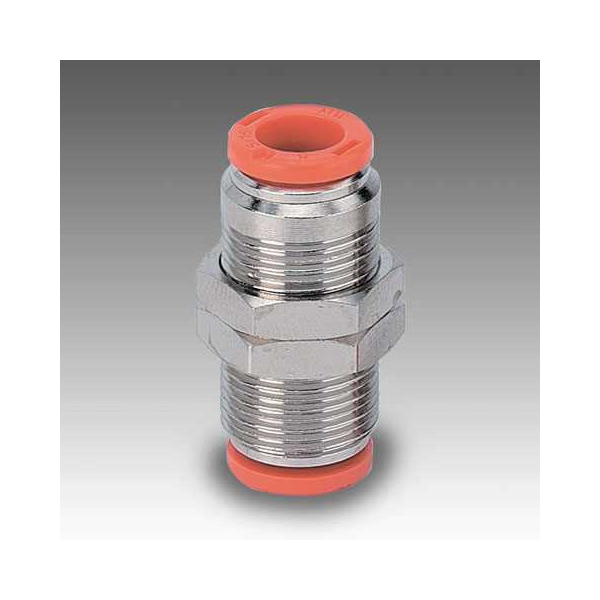

Push-in bulkhead in brass for pneumatic tubing. Tube OD 8 mm. Suitable for vacuum and compressed air.
Product number: 2L11004
Log in to see prices
In stockOut of stockFew in stock
Manufacturer Part No
2L11004
Base material
Brass
Diameter (mm)
8
Push-in bulkhead for connecting pneumatic tubing. Part of the RL10 series in brass, designed for tube OD 8 mm. The release bushing enables quick disconnection without tube damage and allows repeated reuse without loss of sealing.
Key Data
Tube OD: 8 mm Medium: Vacuum and compressed air Recommended tubing: PA11, PA12, Nylon 6, Polypropylene Pressure range: –0.99 to 16 bar Temperature range: –20 to +80 °C
Construction and Standards
Body and locking bushing in brass Stainless steel clamping spring NBR seal
Applications
Used in pneumatic systems for connecting actuators, valves and equipment where quick and reliable assembly/disassembly is required.
