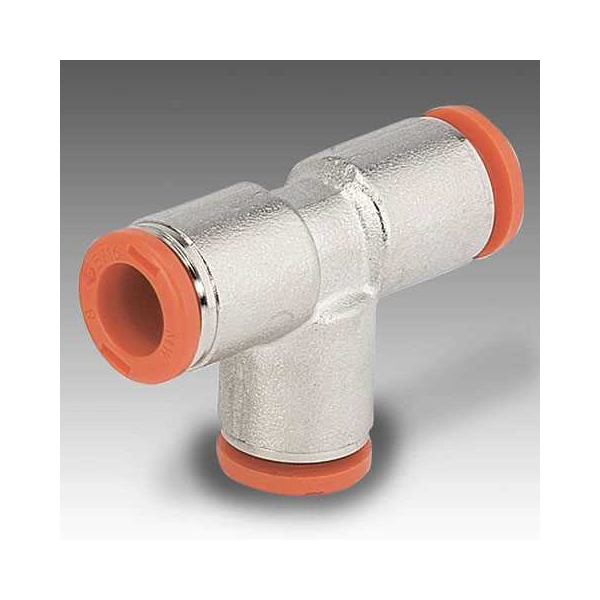

Push-in tee in brass for pneumatic tubing. Tube OD 5 mm. Suitable for vacuum and compressed air.
Product number: 2005002
Log in to see prices
In stockOut of stockFew in stock
Manufacturer Part No
2005002
Base material
Brass
Diameter (mm)
5
Type
Tee Intermediate
Push-in tee for connecting pneumatic tubing. Part of the R5 series in brass, designed for tube OD 5 mm. The release bushing enables quick disconnection without tube damage and allows repeated reuse without loss of sealing.
Key Data
Tube OD: 5 mm Medium: Vacuum and compressed air Recommended tubing: PA11, PA12, Nylon 6, Polypropylene Pressure range: –0.99 to 16 bar Temperature range: –20 to +80 °C
Construction and Standards
Body and locking bushing in brass Stainless steel clamping spring NBR seal
Applications
Used in pneumatic systems for connecting actuators, valves and equipment where quick and reliable assembly/disassembly is required.
