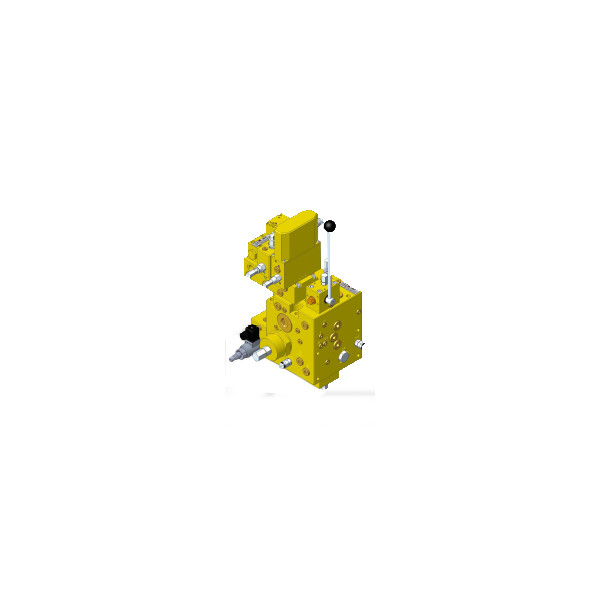

Winch block 12MB

12MB and 12MBS are a modular hydraulic winch block designed for marine environments and incorporates all the functions required to control a winch. 6MB(S) winch block can be mounted as a standalone unit or directly on the motor using an adapter.

Directional valve can be operated manually and/or remotely via proportional hydraulic or electric control. 12MB(S) block is equipped with a counterbalance valve required for lowering loads, a relief valve on the load side, and 12MBS have active boosting system.

12MB(S) system is prepared for a wide range of options for winch applications, such as switching the motor displacement, brake release, and pressure control on the motor. 12MB(S) winch block covers a flow range of 120–700 lpm, with a maximum working pressure of 350 bar.
