7MB Hydranor winch block designed for marine environments
Product number: 7mb

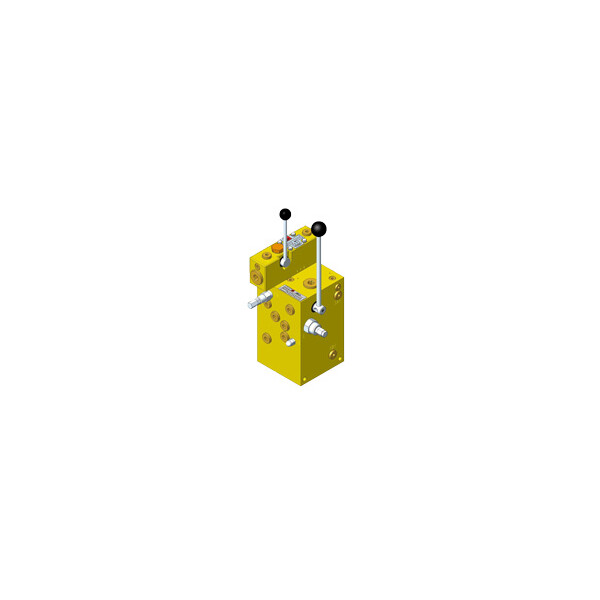

7MB are a cost-effective modular hydraulic winch block designed for marine environments and incorporates standard functions required to control a winch.
The winch block can be mounted as a standalone unit or directly on the motor using an adapter. Directional valve can be operated manually and/or remotely via proportional hydraulic or electric control.
7MB block is equipped with a counterbalance valve required for lowering loads and a relief valve on the load side. 7MB system is prepared for options for winch applications, such as switching the motor displacement and brake release.
7MB winch block covers a flow range of 65–120 lpm, with a maximum working pressure of 315 bar.
