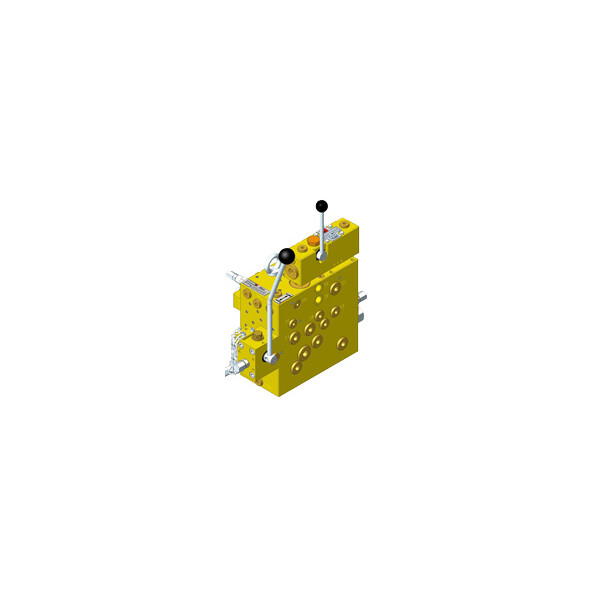

9MB Hydranor winch block designed for marine environments
Product number: 9mb_70-220
9MB are a modular hydraulic winch block designed for marine environments and incorporates all the functions required to control a winch.
9MB winch block is prepared for direct mounting on the Staffa SM3/SM4 flange. Directional valve can be operated manually and/or remotely via proportional hydraulic or electric control.
9MB block is equipped with a counterbalance valve required for lowering loads, a relief valve on the load side, and make-up functionality. 9MB system is prepared for a wide range of options for winch applications, such as switching the motor displacement, brake release, and pressure control on the motor. 9MB flow range is 70–650 lpm, with a maximum working pressure of 350 bar.
