Solenoid valve Series 70 direct acting (SO) 5/2 1/2"

5/2 valve 1/2". Solenoid actuated direct acting (SO). Flow at 6 bar: 3200 Nl/min (ΔP 0.5 bar), 4600 Nl/min (ΔP 1 bar).

Product number: SOV 45 SOB 00

In stock Out of stock Few in stock

Manufacturer Part No: 7030021200
Activation type: Electric
Default position: N/A - Not applicable

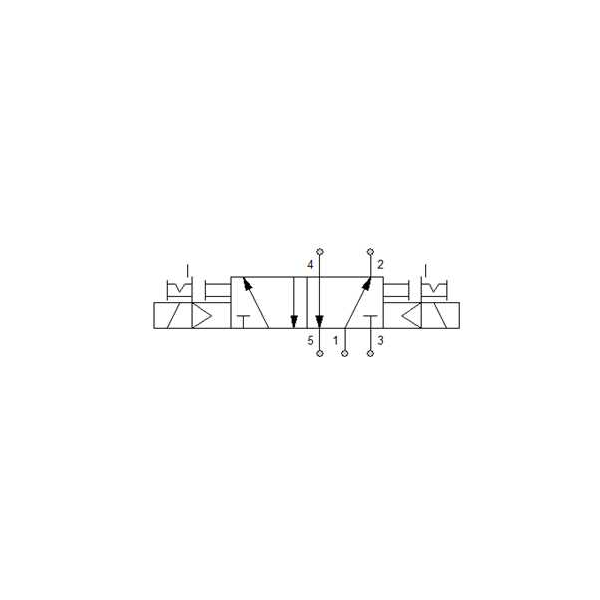

Operating mode: Bi-stable
Port size and type: 1/2" BSP
Spool type: 5/2

Series 70 is part of Metal Work’s range of traditional valves. Available in sizes 1/8", 1/4", 3/8" and 1/2", in versions 3/2, 5/2, 5/3 and double 3/2, with mechanical, manual, pneumatic or electric actuation.

Key data:
- Operating pressure 2.5–10 bar
- Temperature range: standard −10…+60 °C, LT version −40…+60 °C
- Flow at 6 bar 3200 Nl/min (ΔP 0.5 bar), 4600 Nl/min (ΔP 1 bar)

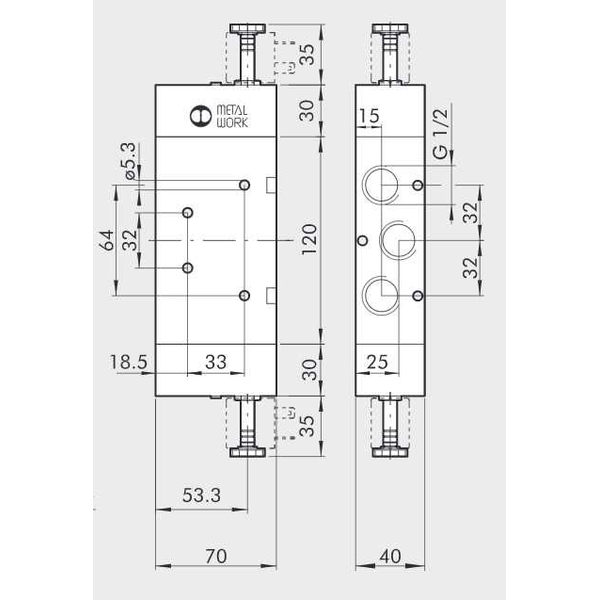

Mounting: can be installed in line, onto a wall, directly on the cylinder with bracket or in series on a multiple/modular base.
Standards/certificates: ATEX, ISO 13849, SIL.

Applications: control of pneumatic actuators and cylinders in industrial automation.
